Samsung Interactive Display WAD series | LH75WADWLGCXUE
Unlimited Learning Possibilities
Introducing the Interactive Display WAD series, for engaging educational experiences. Based on Android OS, it provides a familiar and intuitive user experience. Download apps through Google Play and use pre-installed apps like YouTube and Chrome to stay productive and open a new era of education.

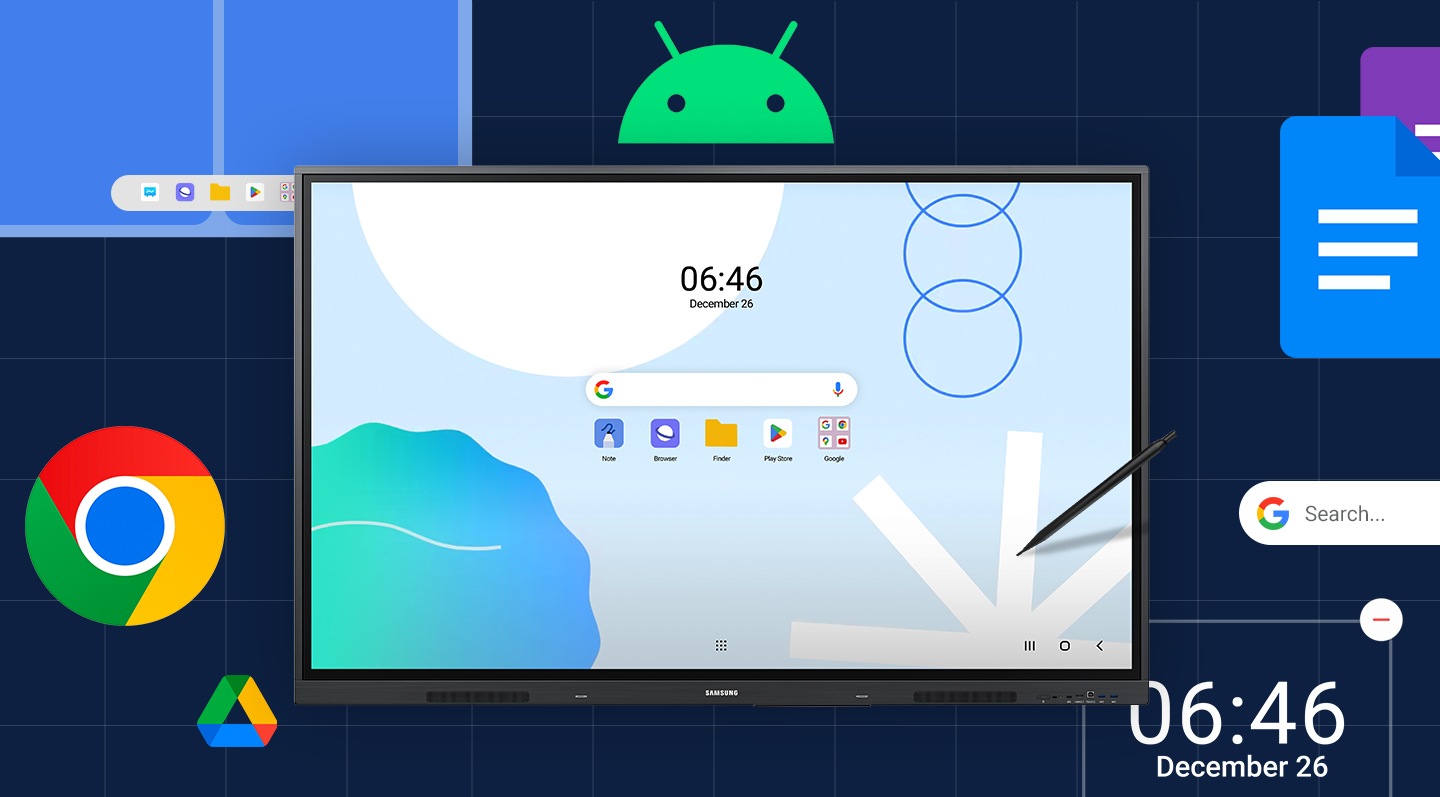

An intuitive UX that fits your needs
Powered by Android™
The WAD series offers familiarity to its users. It’s compatible with other Android devices and provides a variety of widgets and an easily customizable homescreen. These features create more flexibility in building an environment that suits various learning needs.

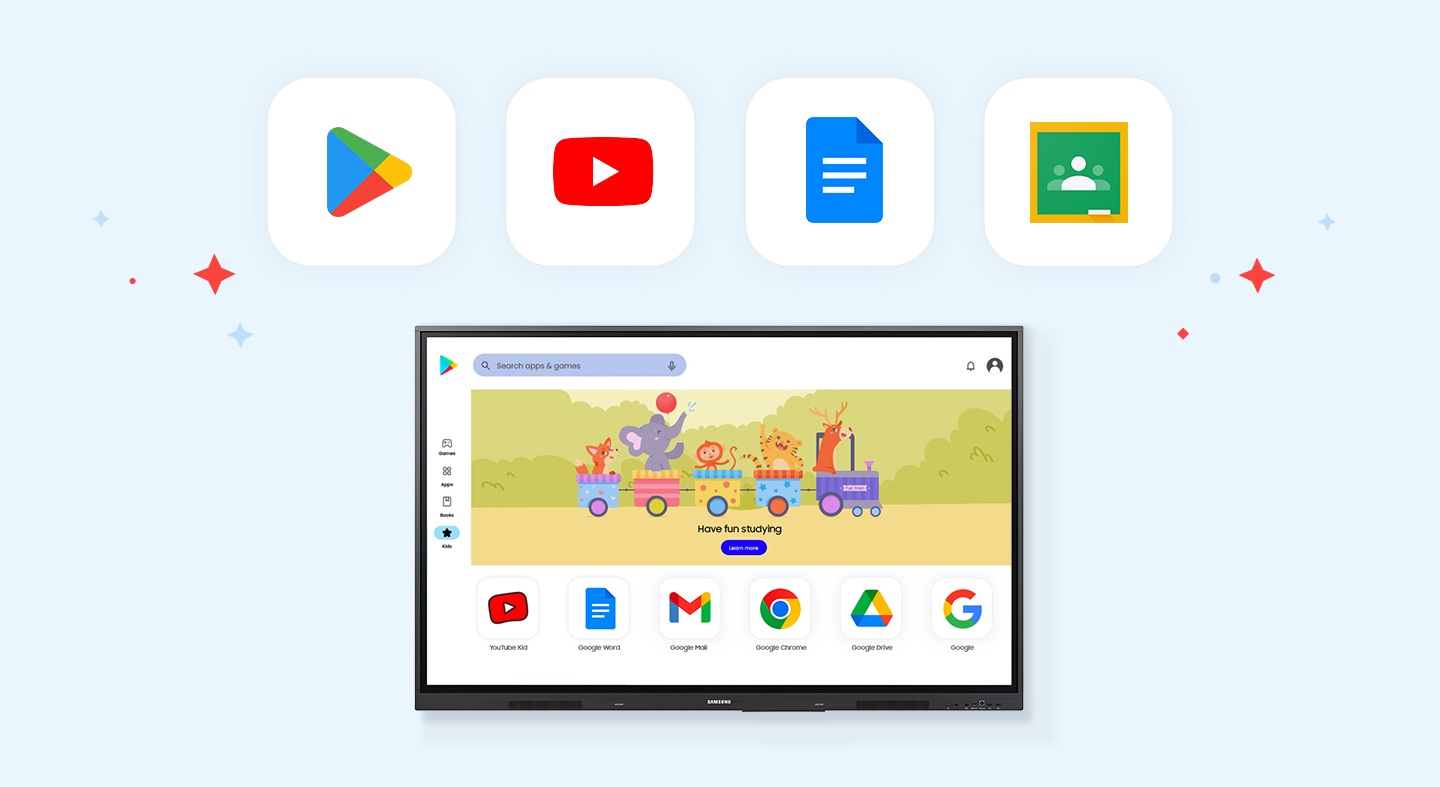

Effortless access to Google services
EDLA Certification
With an EDLA certification, the WAD series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like GoogleClassroom leads to increase efficiency and enhance communication with students.

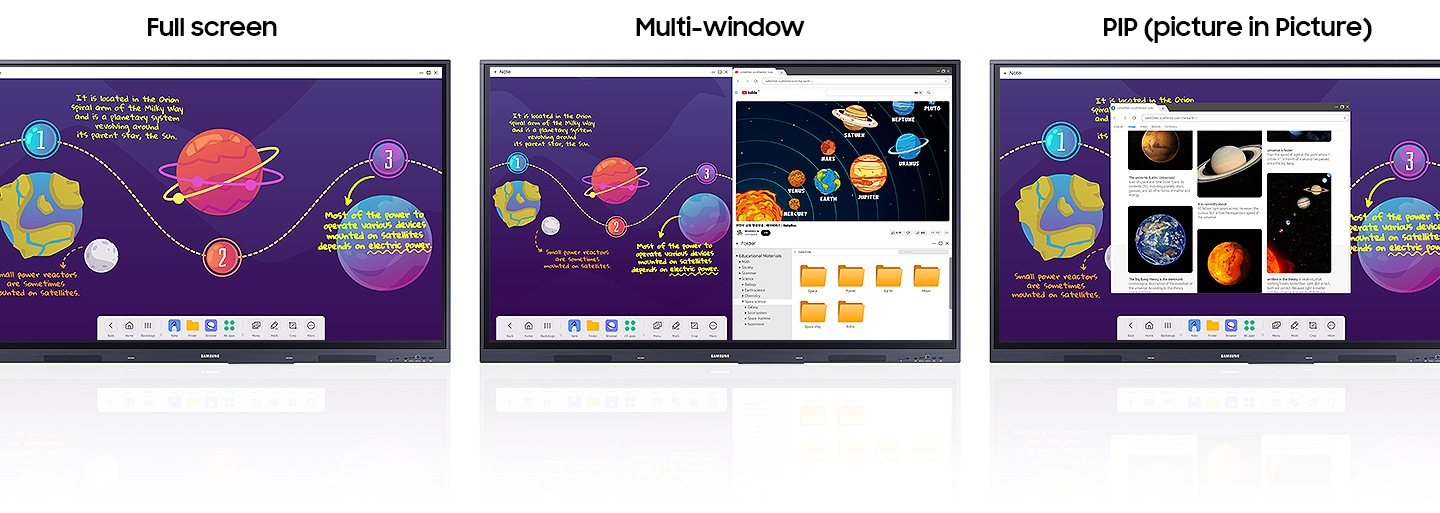

Display multiple screens simultaneously
Easy Multitasking
Various screen modes, including split screen and multi-window, enable teachers to easily display information and multitask at the same time on the WAD series.This flexibility provides convenient access to all the screens required to create engaging learning environments.
Smart, wireless sharing on multiple devices
Powerful Screen Sharing
The WAD series supports screen mirroring for up to nine devices, increasing student engagement. This feature ensures every student is included and engaged ascontent can be shared on both the large display and individual devices. It can be used on iOS, Mac, Windows, Android, or Chrome OS.
Writing experience
Better interaction with best-in-class multi-touch
Multi-point touch
Multiple users can write on the whiteboard at the same time with the display’s advanced multi-touch capabilities.Up to 40 simultaneous touchpoints are possible, allowing large groups of students and teachers to collaborateand learn together in a fun and natural way.

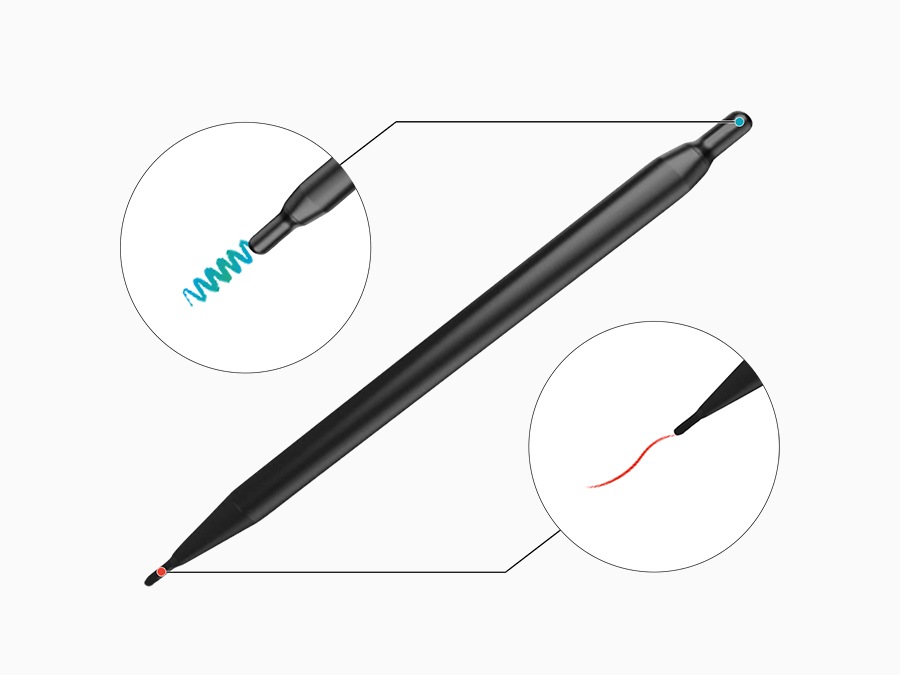

Switch pens without changing settings
Dual Pen
The dual pen function enables the use of two different writing tools with no downtime. With the double-sided nibapplied, users can effortlessly switch between two different colors on the front and back side of the pen – without needing to change the settings or interrupt the flow of the lesson.
Connectivity
Convenient connectivity with USB-C
3-in-1 USB-C port
Connectivity is enhanced with the 3-in-1 USB-C port, enabling screen mirroring, touch control and external device charging (max. 65W). Teachers can simply connect to the USB Type-C port, allowing them to deliver interactive and engaging lessons without any hassle.
Accessible content for any class size
HDMI out
With the HDMI Out function, whiteboard screen content can be shared on a different and larger screen in the classroom. This feature ensures teachers can provide a real-time, interactive experience for students who can easily view the screen content regardless of where they sit in the classroom.
Specifications
-
Display: 75″
-
Panel Type: ADS
-
Resolution: 3,840 x 2,160
-
Pixel Pitch (HxV, mm): 429.6(H)×429.6(V)
Specifications Detail
Display
- Diagonal Size: 75″
- Panel Type: ADS
- Resolution: 3,840 x 2,160
- Pixel Pitch (HxV, mm): 429.6(H)×429.6(V)
- Brightness (Typ): 400 nit
- Contrast Ratio: 1,200:1
- Viewing Angle (H/V): 178/178
- Response Time: 8ms
- Color Gamut: 72%
- Glass Haze: 25%
- H-Scanning Frequency: 135Khz
- Maximum Pixel Frequency: 78MHz
- V-Scanning Frequency: 60Hz
- Operation Time Support: 12/7
Connectivity
- HDMI In: 3
- Version of HDMI: 2
- Version of HDCP: 2.1
- USB: 5 (2.0 X1, 3.0X4)
- IR In: Yes
- Audio In: Stereo Mini Jack
- Audio Out: Stereo Mini Jack
- Video Out: Yes
- RS232 In: Yes
- RS232 Out: Yes
- RJ45 In: Yes
- RJ45 Out: Yes
- WiFi: Yes
- Bluetooth: Yes
Power
- Power Supply: AC100-240V 50/60Hz
- Power Consumption (On Mode, W): 385W
- Power Consumption (Sleep Mode, W): 0.5 W
Dimension
- Set Dimension (WxHxD, mm): 1709 x 1020 x 88 mm
- Package Dimension (WxHxD, mm): 1863 x 1140 x 225 mm
Weight
- Set Weight: 45.5 kg
- Package Weight: 57.6 kg
Operation Conditions
- Temperature: 0℃~40℃
- Humidity: 10 ~ 90%
Mechanical Specification
- VESA Mount (mm): 800 x 400
- Bezel Width (mm): 16.4mm(U), 16.4mm(L/R), 44.9mm(B)
- Bezel Color: Space Gray
- Frame Material: Non-Glossy
Optional Feature
- Touch: Yes
SoC
- OS Version: Android-13
- Flash Memory Size: 64GB
Touch
- Touch Technology: IR
Certification and Compliance
- EMC Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 J55032 , VCCI-CISPR32 JIS C61000-3-2 GB9254-2021 GB17625.1-2012 CNS13438 (ITE EMI) Class A / AS/NZS CISPR 32 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020
- Safety IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
Enhance collaboration with the Samsung Interactive Display WAD Series 75″ |LH75WADWLGCXUE. Featuring UHD resolution, responsive touch technology, and seamless connectivity, it’s perfect for modern classrooms and meeting rooms.
